Grab for lifting, handling and posing wooden or concrete railway sleepers.
A reliable tool in every condition.
The hydraulic clamp for lifting and handling railway sleepers is a sturdy and proven tool. The gripping force is provided by two powerful cylinders, positioned horizontally. This constructive geometry is very robust and reliable. The curvature of the jaws is designed to optimize the penetration into the stacked materials and to facilitate loading.
Two models available.

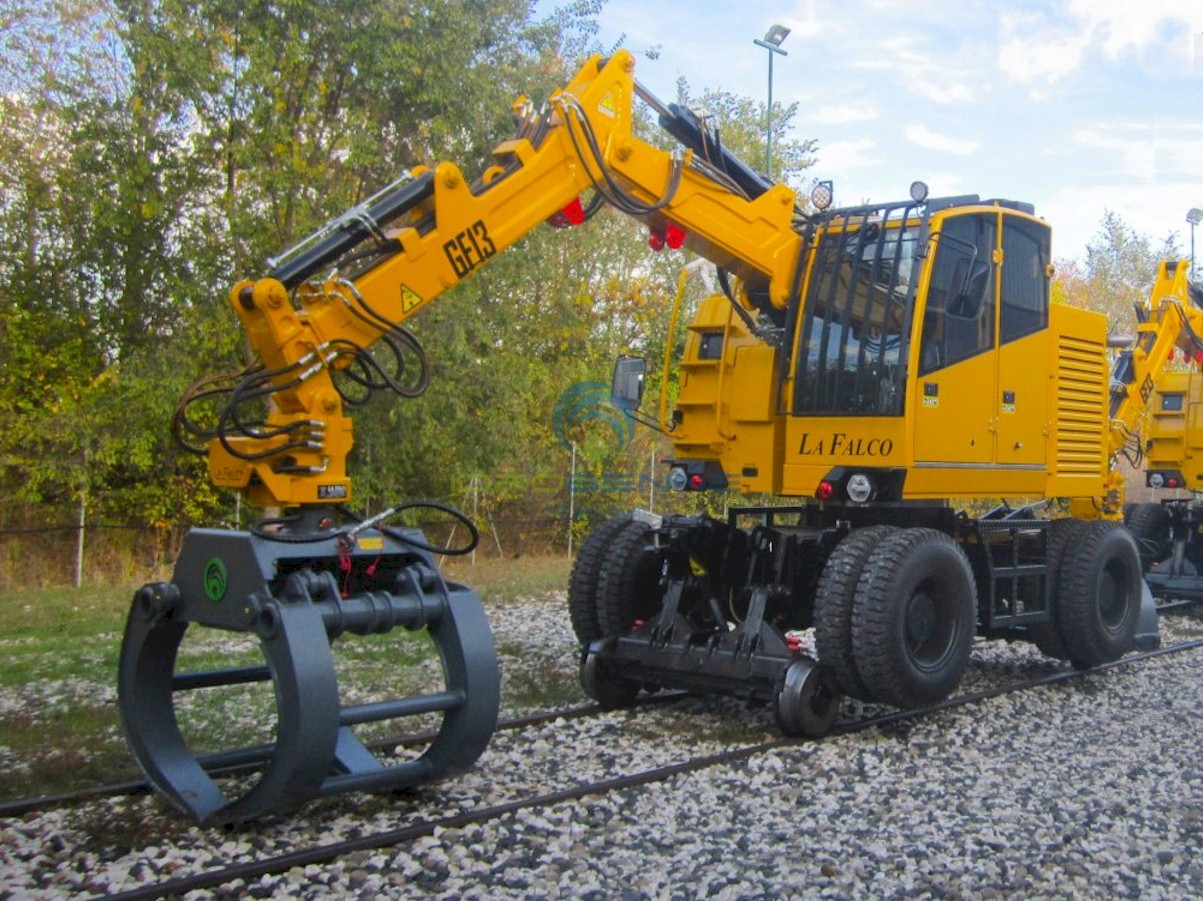

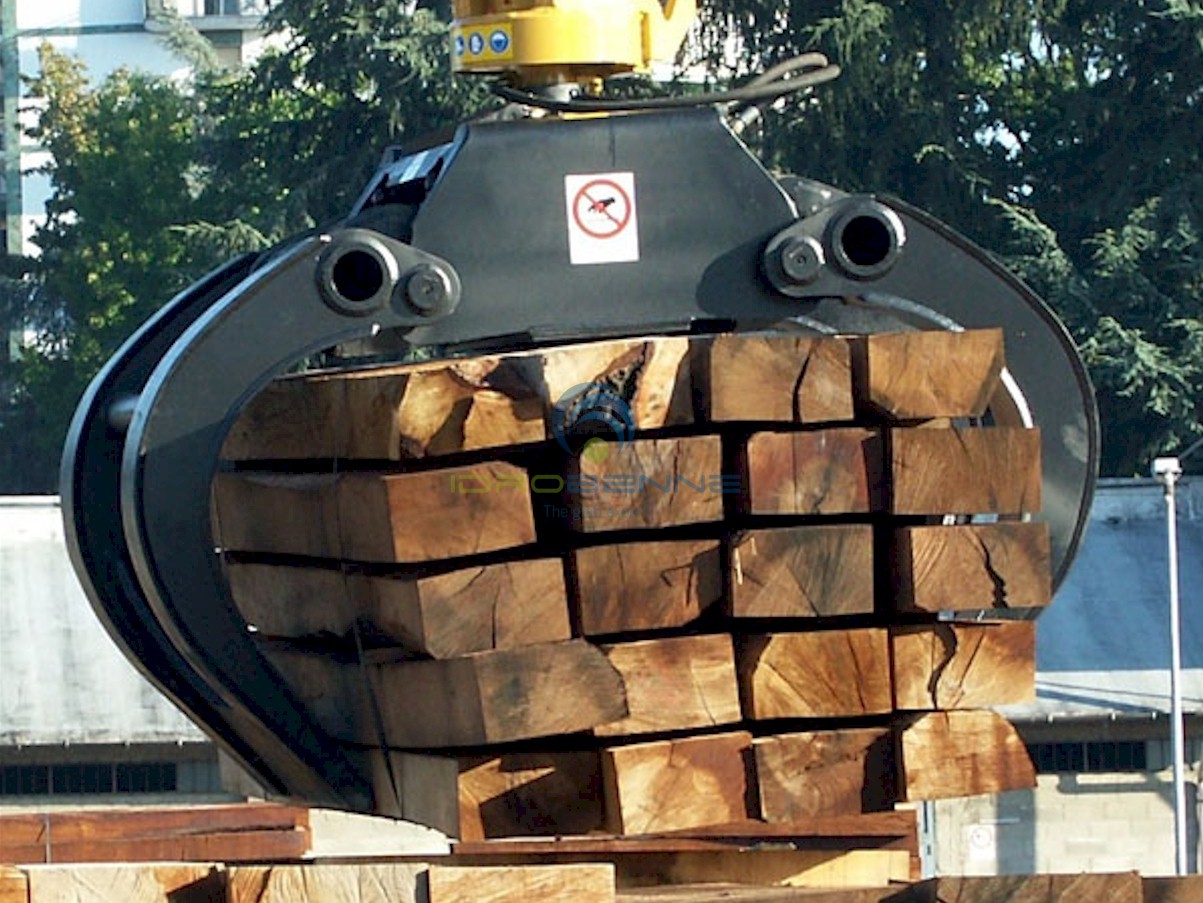

PFS-55 railway grabs can come in two versions: TL and TP. The overall dimensions and the arms opening are the same, but the TL model is indicated for the wooden sleepers, while the massive TP, built with thicker steel, is recommended for the concrete sleepers, which are more abrasive. On request, the Hardox blade joining the tips can be removed, in case jaws with free tips are preferred.
Rail maintenance is a very technically advanced sector of activity, in which only pure professionals may be involved. Idrobenne offers the ultimate tools to these demanding customers, granting strength, reliability and easiness of use.
Custom made adaptors.
Idrobenne may supply all kind of adapters for different rail-road loaders. Each manufacturer of hydraulic machine for railways maintenance, in fact, has a different model of quick coupling that allows the quick switch from a tool to another.
The hydraulic rotator for railways tools
Railway renewal and construction require the simultaneous use of different tools with the same operating machine: every rail-road excavator must have a grab for sleepers, a loading bucket, a grab for rails, a ballast tamper and a bucket to dig between railway sleepers (BMV-2/200-S). For this reason, the rail-road machines are supplied with a system that allows the quick exchange of the different attachments. In Italy this goal is achieved through the use of an hydraulic rotator with pin, which remains suspended to the arm, which can quickly engage each grapple. Idrobenne has developed its own, very robust and reliable hydraulic rotator for railway applications, which serves the purpose perfectly.
Experience in construction and reliability.
More than thirty years experience in the industry, the most modern technical design programs and a careful assembly make Idrobenne’s hydraulic equipment a reliable and safe product. Construction and testing are carried out by highly qualified and experienced personnel. The design of the equipment is always "user friendly", to grant simple access during maintenance. All wear parts are easy to reach and quickly replaceable.
High quality components.
All products are built using high-tensile Swedish steel for the structural parts and use wear plates (Hardox) for parts in contact with the handled materials, such as the blades of the buckets, the tines and the tips. The large diameter pins are made of special steel, hardened under heat treatment. The bushes are provided of an internal spiral for the distribution of grease. The entire production cycle is certified according to ISO 9001 standards.
|PFS - 55/TL||700||3000||300||2140||1450||1300||900||950|
|PFS - 55/TP||990||3000||300||2140||1450||1300||900||950|
