Serie BMO/P

Heavy duty clamshell bucket with two horizontal cylinders

Description

The most popular loading clamshell bucket for excavators.

Heavy-duty clamshell buckets BMO/P have a sturdy construction and are equipped with two powerful hydraulic cylinders, mounted horizontally. The shape of the shells ensures a good intake and a great ease of filling. So, they offer both the advantages of compact buckets and a high closing force. They are suitable for wheeled loaders, rail-road excavators, larger truck cranes, barges and material handlers.

Loading aggregates and digging.

Clamshell buckets are gripping devices formed by two shells in synchronous movement, put in motion by hydraulic cylinders. In general terms, these attachments are suitable to load of gravel, sand and earth, or to the dig hard soil and compact surfaces. Depending on the constructive geometry and accessories, clamshell buckets can have a specific application. They can be mounted on a wide range of machines, such as truck cranes, backhoe loaders, mini excavators, agricultural machines, stationary cranes, material handlers, harbour cranes, rail road excavators and so on.

A complete range of accessories.

Clamshell buckets can mount a full range of accessories, which can make them suitable for specific applications. The most common optional are hydraulic rotators, mechanical rotators (free revolving), bolt-on digging teeth, anti-wear counter-blades, scrapers (or ejectors) to clean the shells from mud and extensions of different lengths.

Experience in construction and reliability.

More than thirty years experience in the industry, the most modern technical design programs and a careful assembly make Idrobenne’s hydraulic equipment a reliable and safe product. Construction and testing are carried out by highly qualified and experienced personnel. The design of the equipment is always "user friendly", to grant simple access during maintenance.  All wear parts are easy to reach and quickly replaceable.

Different rotator options

The attachments for crane and excavator can be equipped with a rotation device, either mechanical (free, 250° rotation) or hydraulic (hydraulic motor with continuous rotation). Depending on the type of equipment, the rotator may be incorporated in the main frame of the equipment or mounted on the top of it. Idrobenne offers a wide range of high quality hydraulic rotators.

High quality components.

All products are built using high-tensile Swedish steel for the structural parts and use wear plates (Hardox) for parts in contact with the handled materials, such as the blades of the buckets, the tines and the tips. The large diameter pins are made of special steel, hardened under heat treatment. The bushes are provided of an internal spiral for the distribution of grease. The entire production cycle is certified according to ISO 9001 standards.

Custom links.

Orange peel grapples, clamshell buckets, log grapples and similar attachments must be mounted on operating machines through a cardan link. This part allows free swinging in the four horizontal directions (so-called pendulum mounting). Idrobenne can manufacture and supply custom-made links for any operating machine such as truck cranes, excavators, material handlers and earth moving equipment.

Gallery

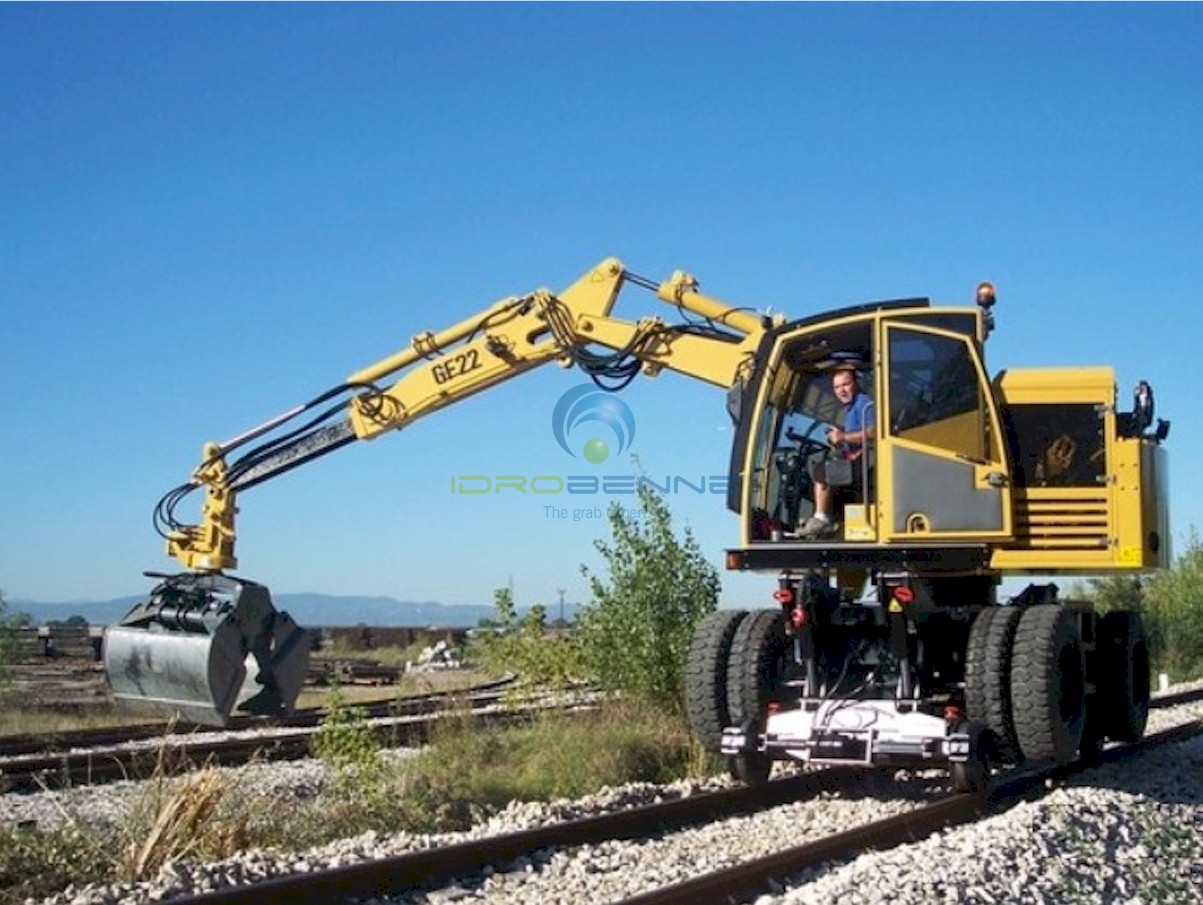

BMO 500.P2

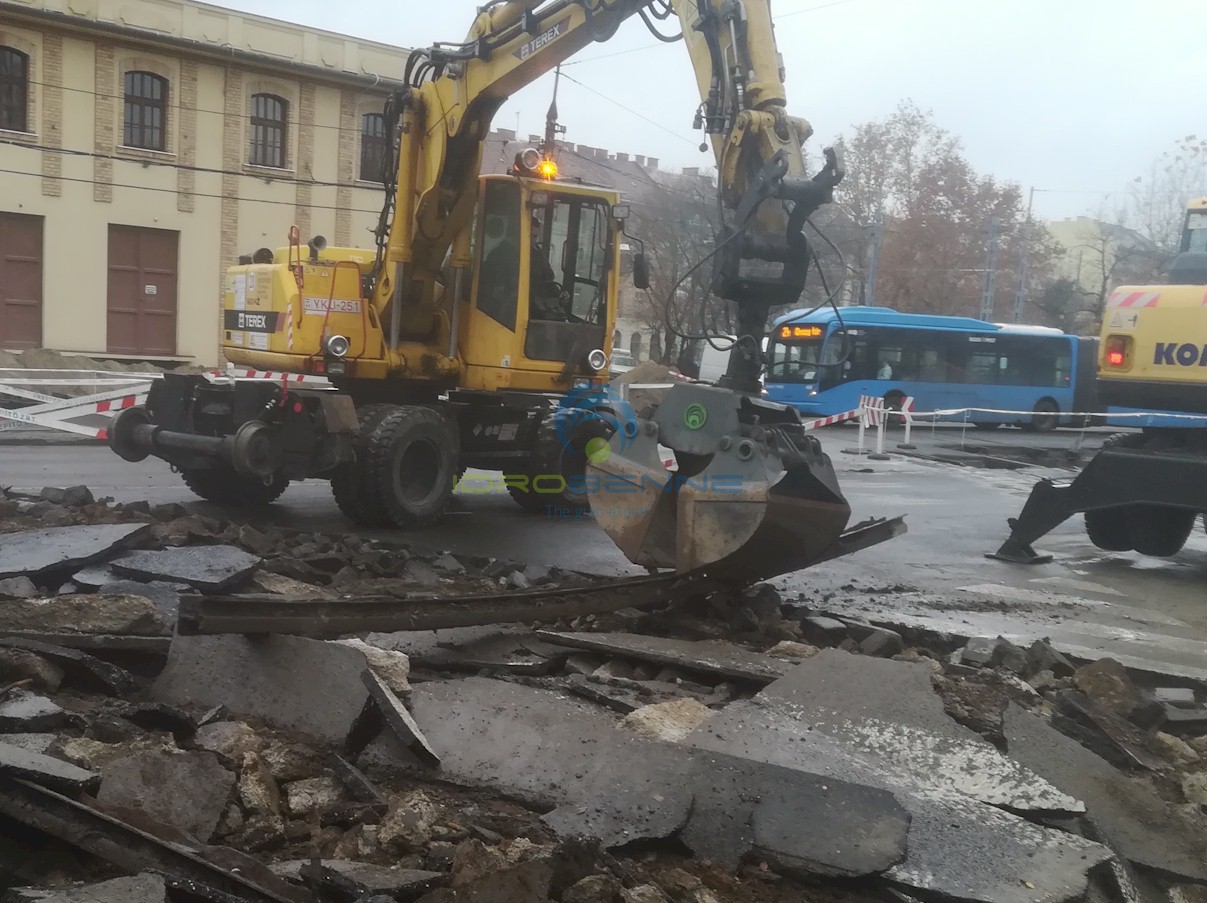

BMO 500.P2

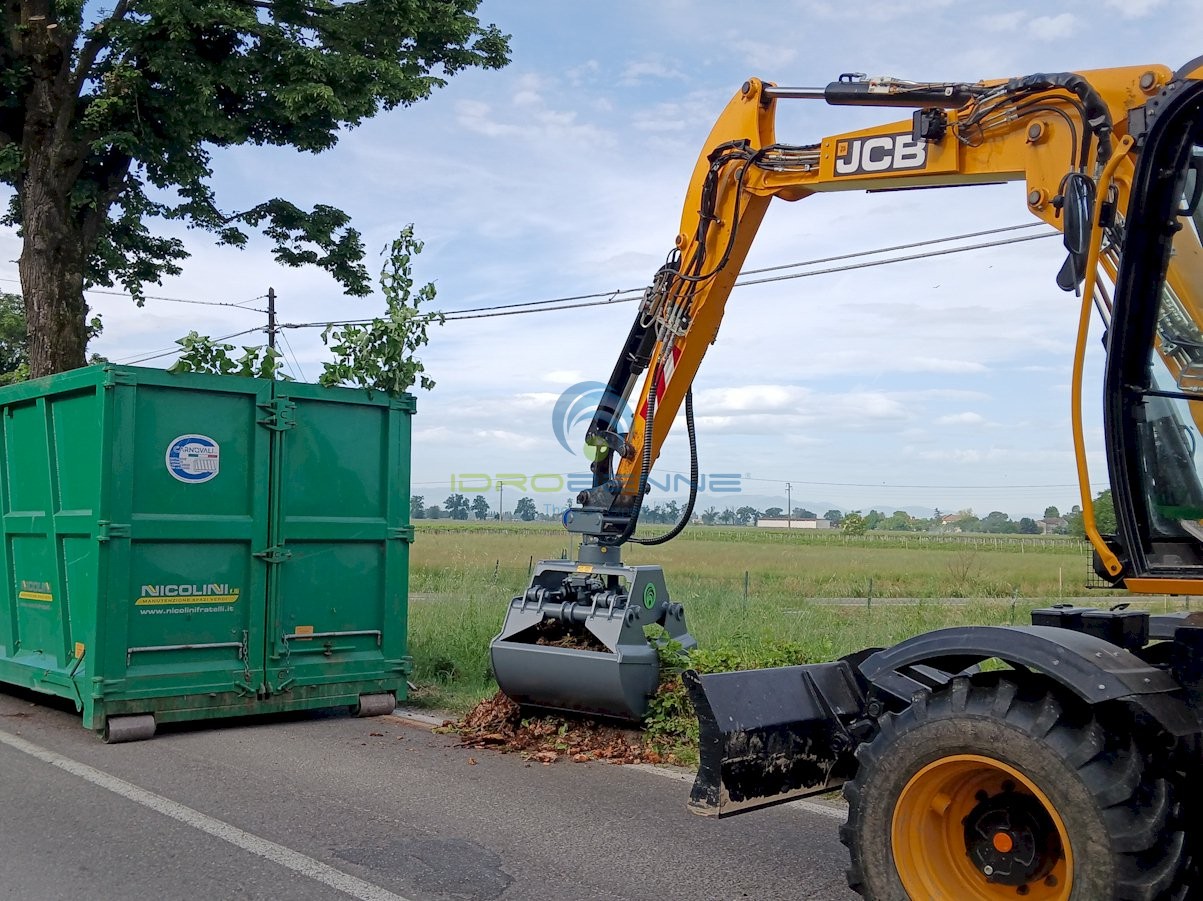

BMO 500.P2 + GRI

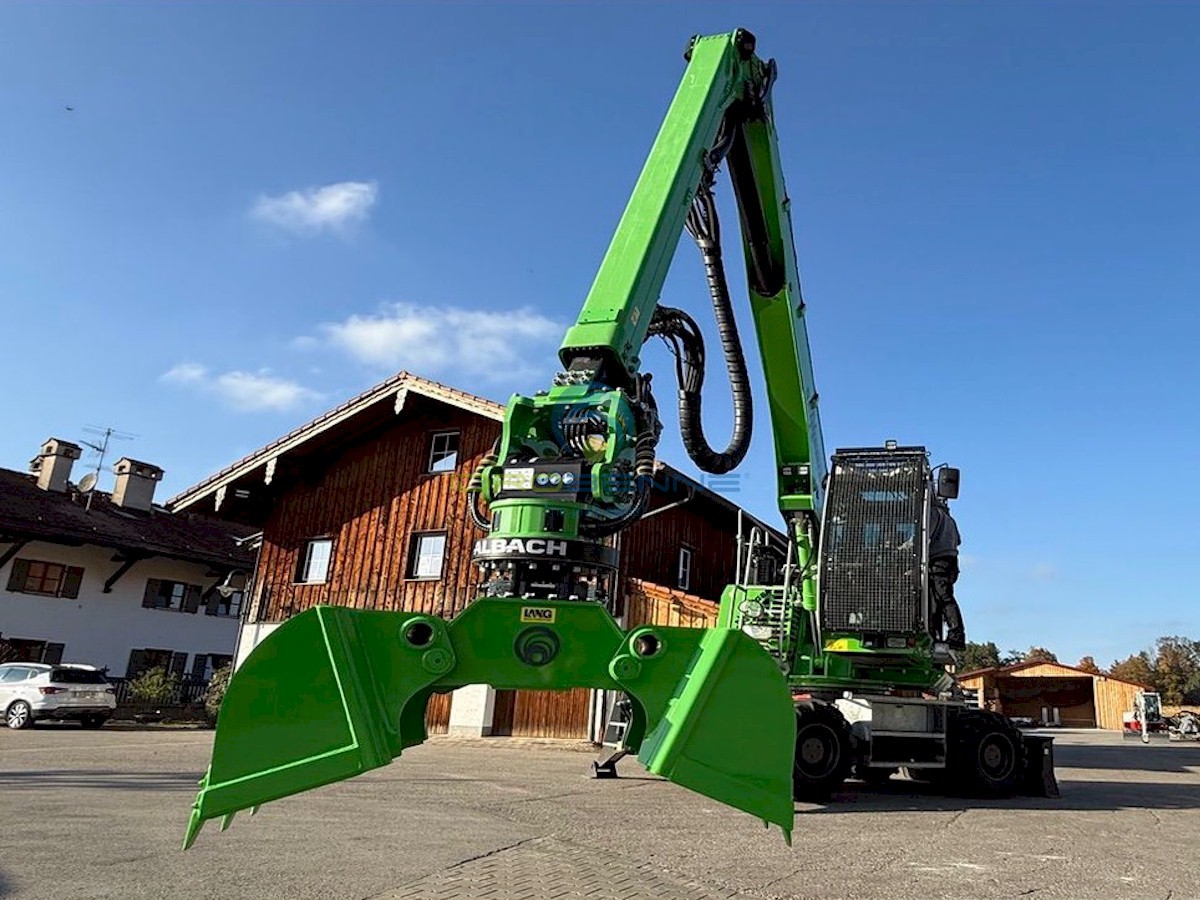

BMO 700.P2

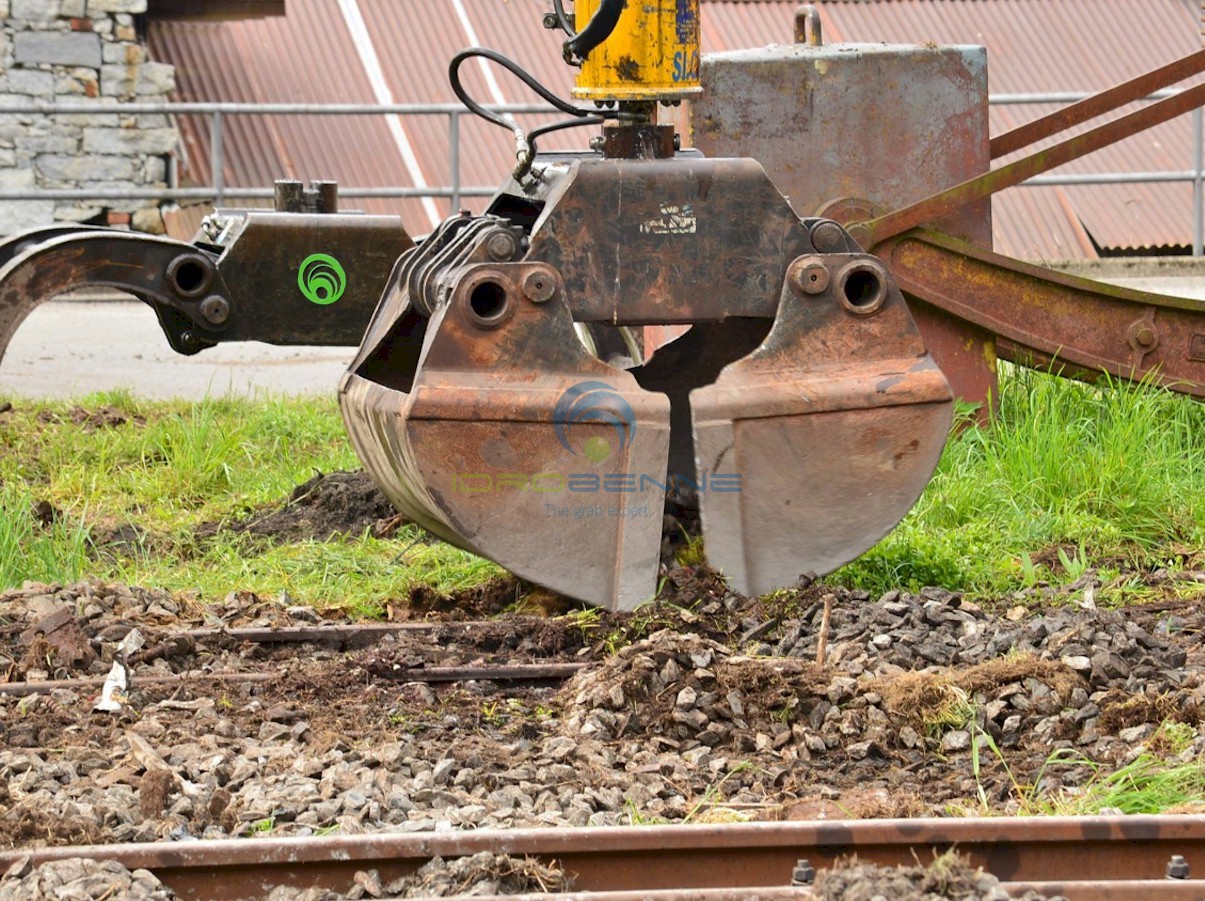

BMO 1000.P2 rail e PFS 55.TP

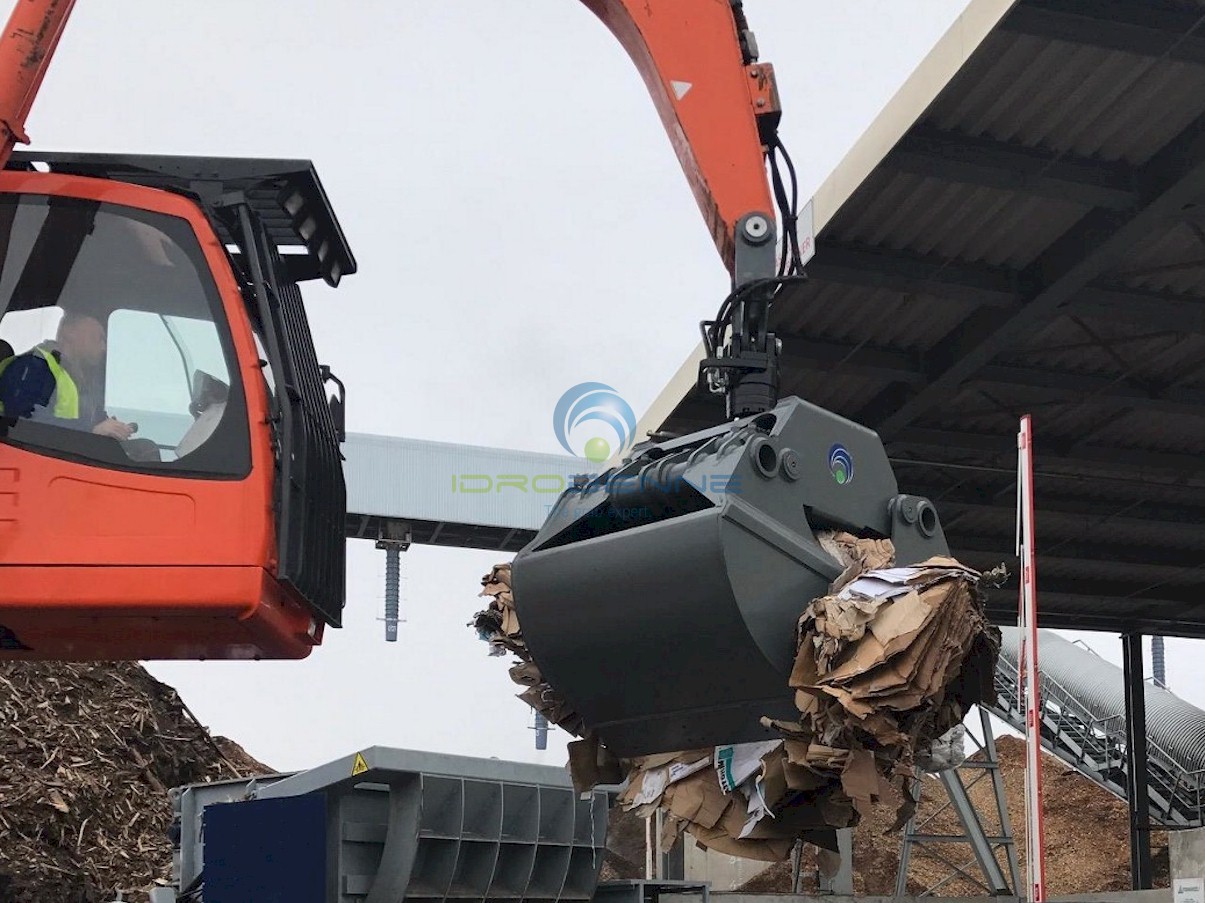

BMO 1000.P2

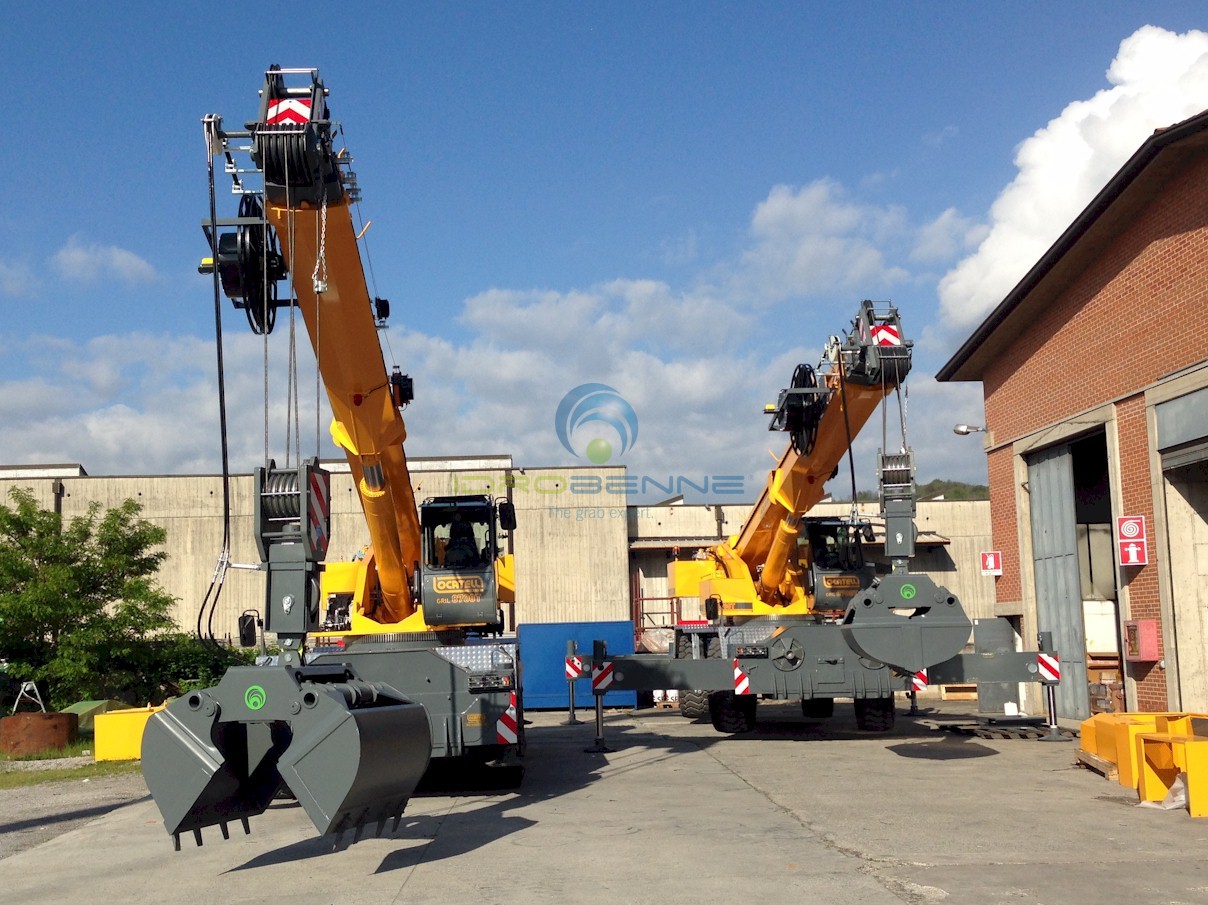

BMO 1200/P2

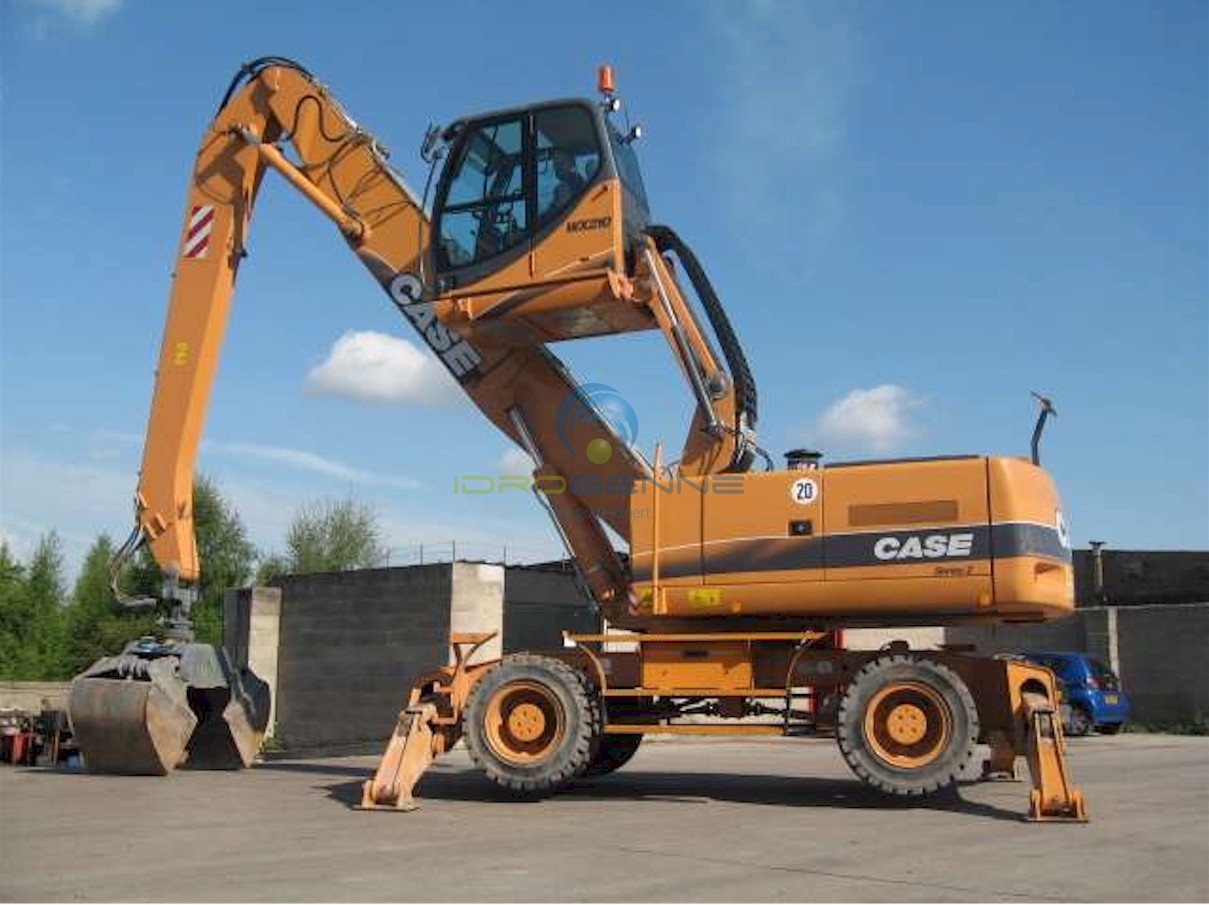

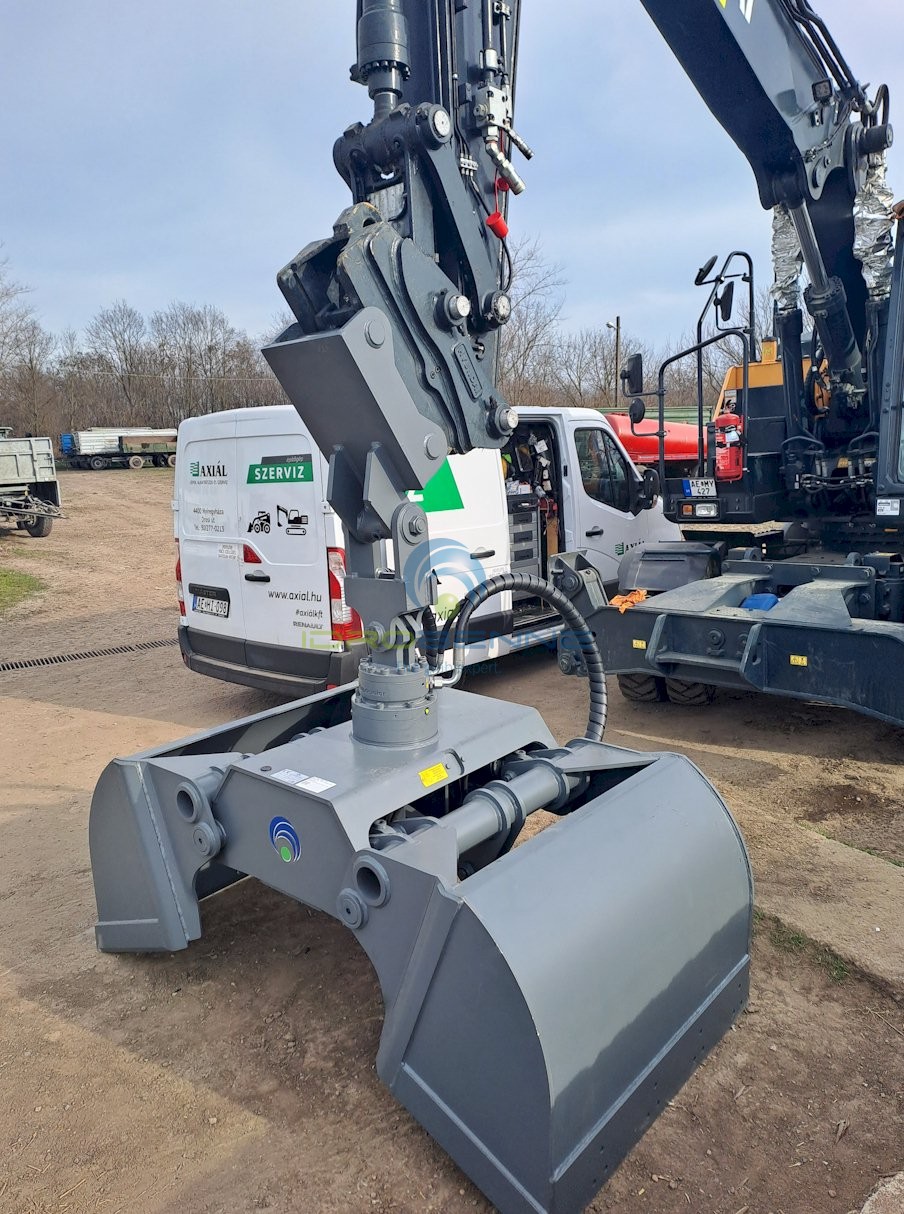

BMO 1200.P2 + GRI

BMO 1200.P2 + GRI

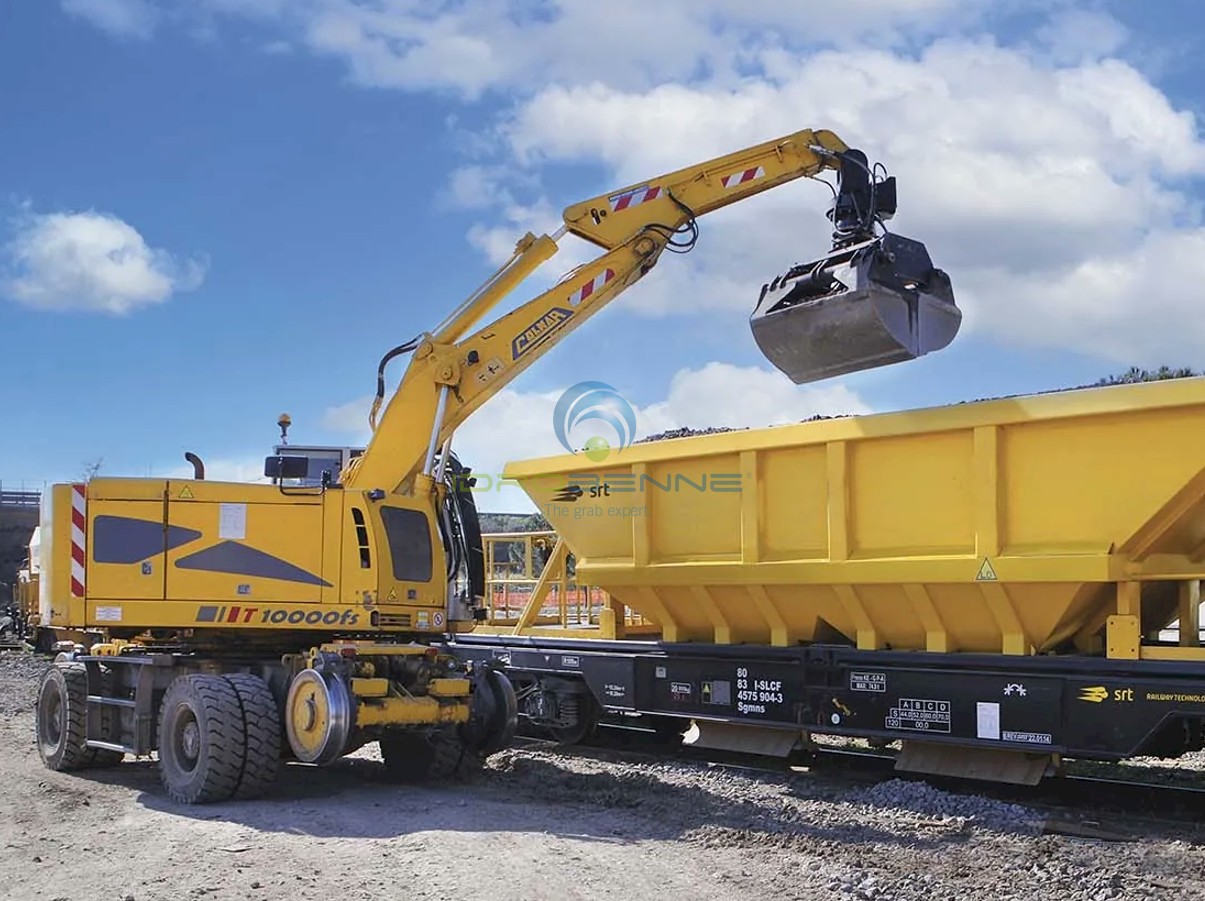

BMO 1500.P2 + GRI 20 T.P

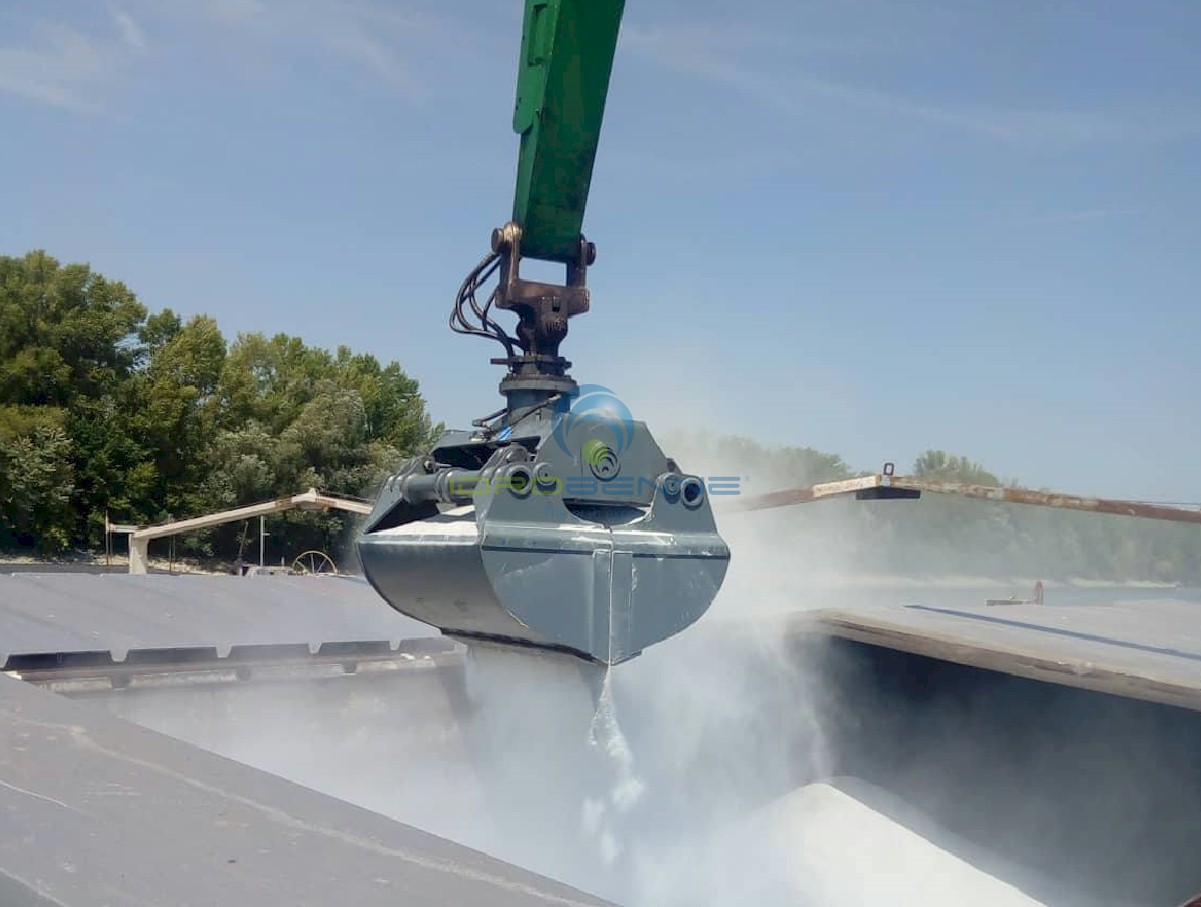

BMO 1500/P2

BMO 2000.P2

Models
